Your Top Choice for Reliable Roofing Panels
Constructed with high-quality materials and utilizing advanced building techniques, every panel is designed to endure the demands of different climates and environments.
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
A Closer Look at Roof Panel Manufacturing: Explore the detailed process of roof panel manufacturing, where attention to detail and a commitment to quality ensure every panel meets the highest standards of precision and durability.
Fast To Construct
PUF panel manufacturers produce these panels directly in their facilities, streamlining the installation process on-site. This straightforward setup not only saves time but also enhances overall installation efficiency.
Insulation – Heat Proof
Crafted with premium Rigid Polyurethane Foam (PUF), this product is renowned for its exceptional insulation properties and efficiency. Viraat’s PUF Panel meets strict quality and performance standards, resulting in significant savings on both cooling and heating costs.
Strong Load Bearing
The roof panels are designed to support compressive loads of up to 1 ton per square foot, providing dependable strength over long spans, whether under live or dead weight. Their robust construction minimizes the need for additional support structures, demonstrating their outstanding strength and efficiency in roofing applications.
Edge Protect Technology
Weather Shield For Ultra Long Life
The panels incorporate The Weather Shield coating, adding an extra-thick layer of paint for enhanced protection against external elements. This UV-resistant coating ensures longevity and resilience, resulting in roof panels with exceptional durability and UV protection.
The detailed specifications highlight their design, construction, and performance, showcasing the unmatched quality and precision embedded in every panel.
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Delve into a comprehensive analysis that highlights the variety of product ranges, competitive pricing models, key features, and additional offerings available in our roof panel selection.

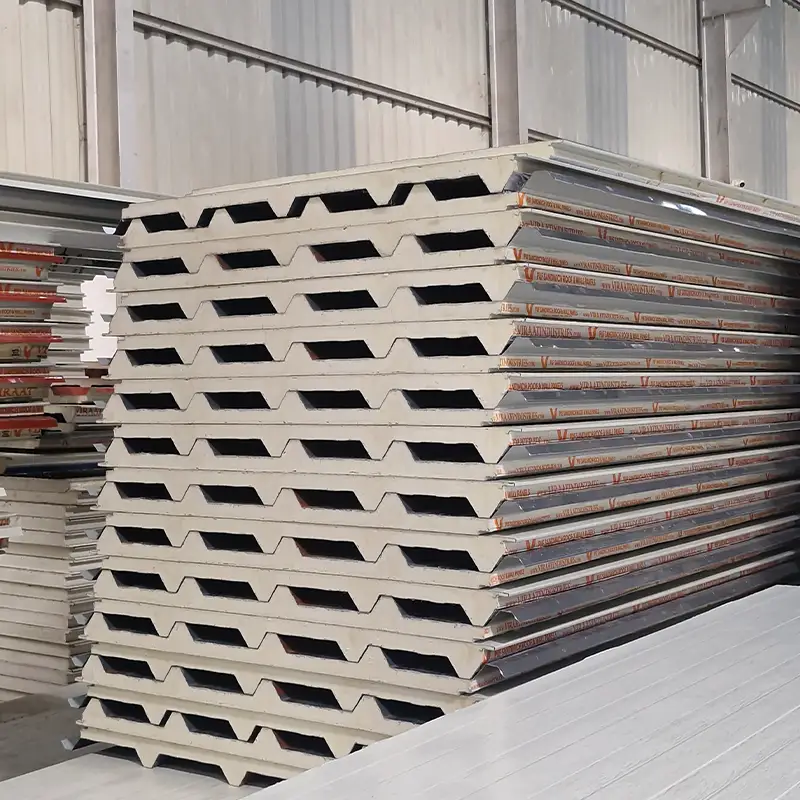

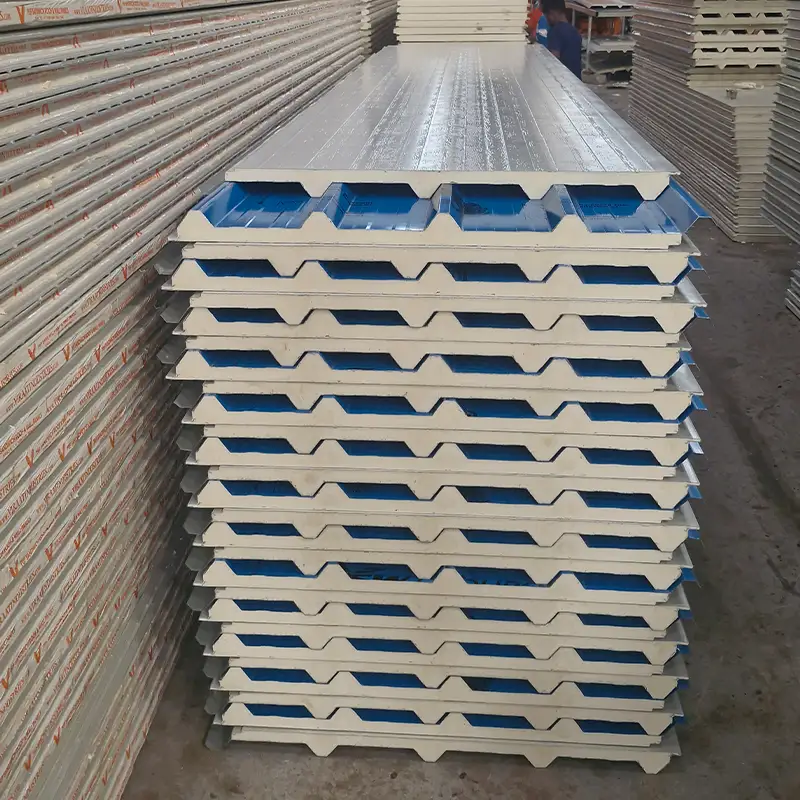

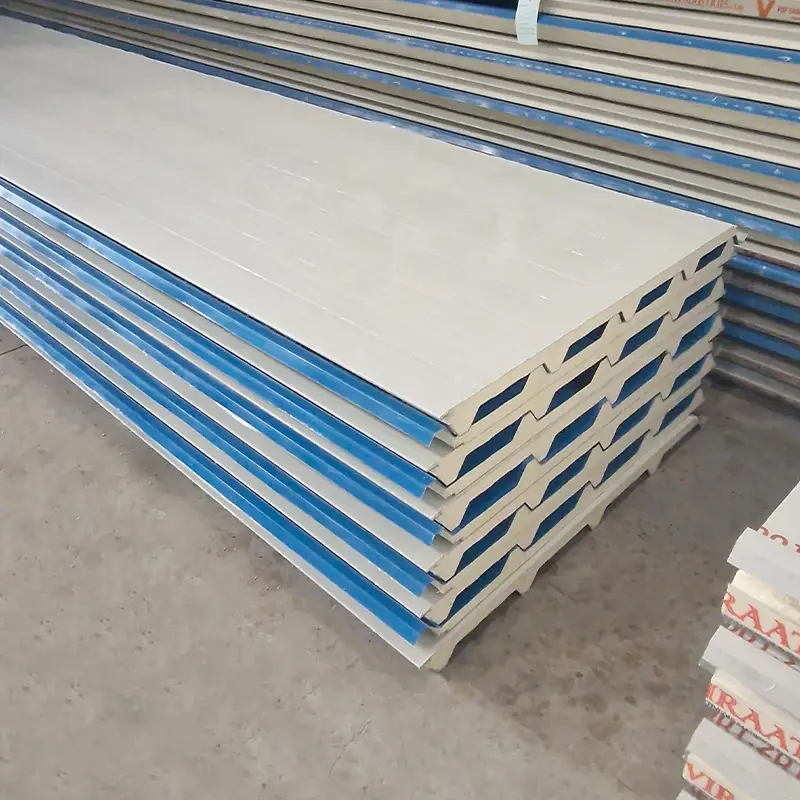

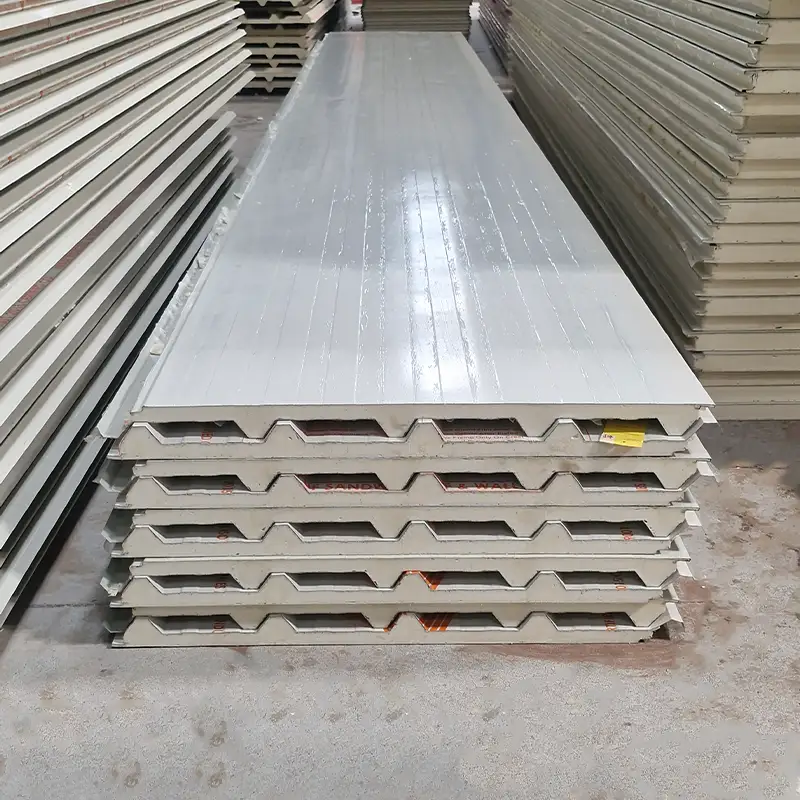

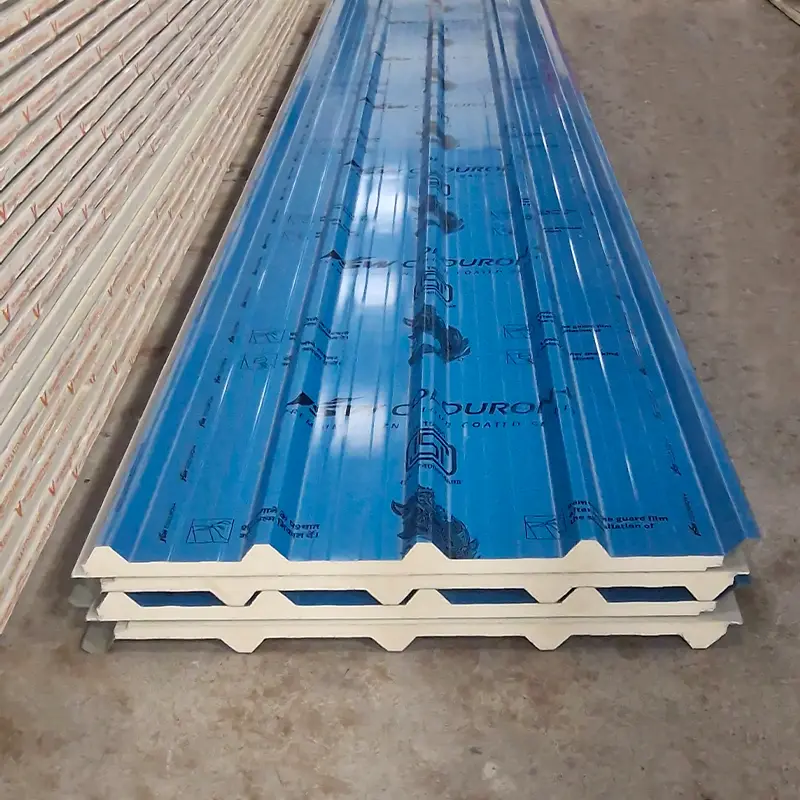

Roof Panels
The roof panels are carefully designed to withstand harsh environmental conditions. Available in a wide range of finishes and colors, they blend effortlessly with various architectural styles. Manufactured using a continuous line production method, the panels feature 5 corrugations, a 250mm pitch, and exterior baby ribs for added strength.
The panels are made with a Polyurethane Foam density of 40±2 kg/m³ and are equipped with Guard Film Protection on all exposed surfaces. They also conform to IS12346 standards for quality assurance.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

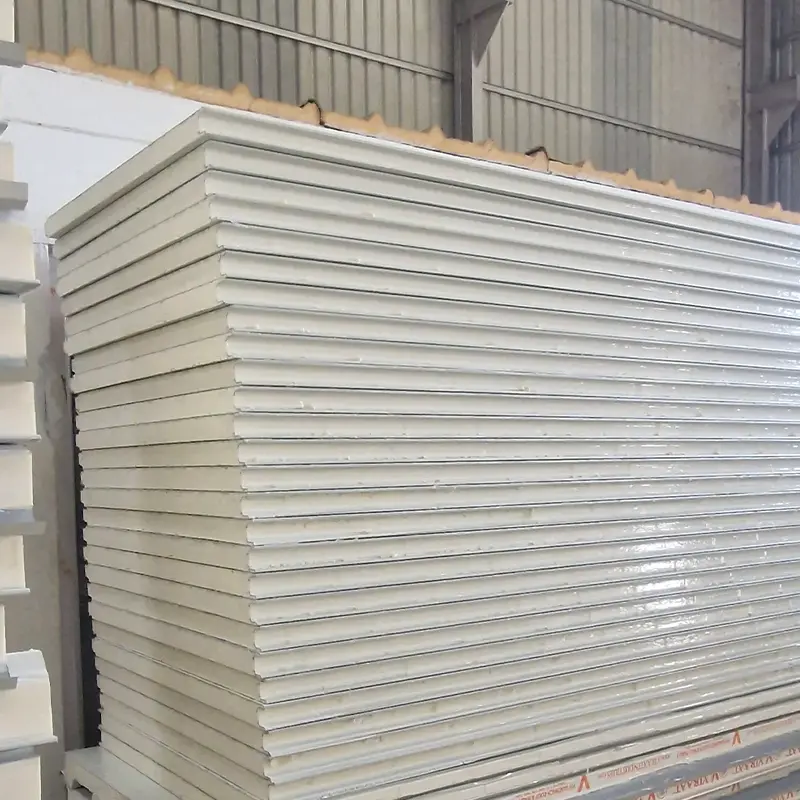

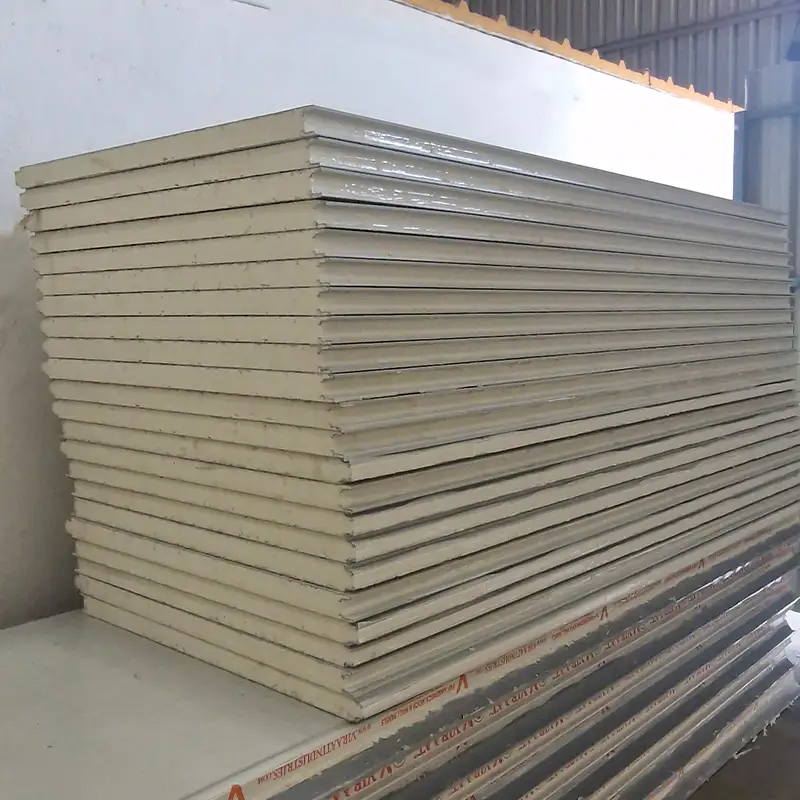

Wall Panels
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
